Introducing Oryctes

  • Coverage of 16 Ha/Day

  • 16 Liter Tank

  • RTK Positioning

  • Point-to-Point Spraying

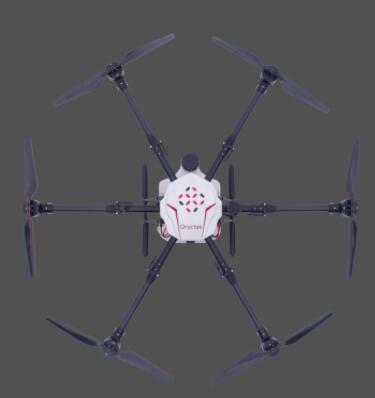

Oryctes is the first high accuracy point-to-point agriculture spraying drone created specifically for oil palm as a proven solution against damaging pests such as Rhinoceros Beetles

Oryctes In Action

Cutting-Edge Precision Point-to-Point Spraying

Harnessing RTK positioning technology and a unique single-nozzle design, Oryctes sprays with centimetre-level precision. Precisely control the quantity and area of spraying to avoid using excessive pesticide

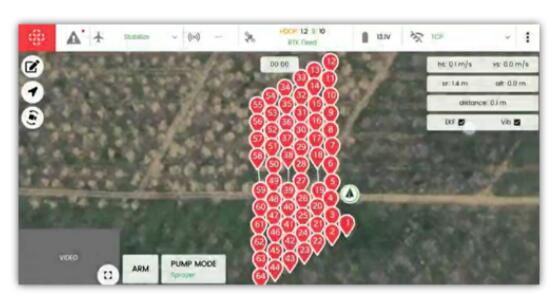

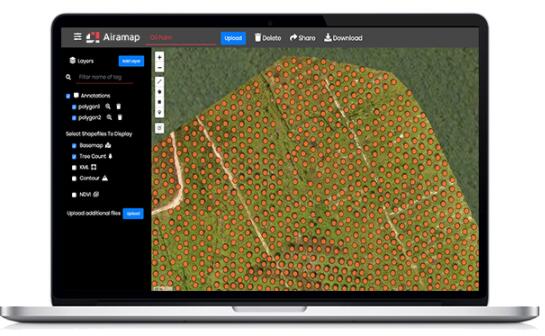

Proprietary Purpose Built Software

Technical Specifications

  • Drone Information
  • Propulsion System
  • Radar System
  • Spray System
  • RTK System
  • Other Specficiations

  • AIRFRAME & TANK

    ModelORY001
    Extended Dimension2364.6 x 2144.6 x 556 mm
    Folded Dimension1073 x 956 x 546 mm
    Tank Capacity16L
    Max Battery Size95 x 195 x 65 (x 2)
    Unladen Weight (Without Battery)13.5 kg
    Unladen Weight (With Battery)19.5 kg
    Waterproof & Dustproof StandardIP65

  • FLIGHT PARAMETERS

    Maximum Take-Off Weight35.5 kg
    Power Battery22000 mAh, 12S LiPo
    Max Thrust-Weight Ratio2.548
    Flight Time15 min (Per Mission)
    Optimum Operating Speed (Spot Sraying)3 m/s
    Recommended Operating Temperature0 to 40℃


  • PROPULSION SYSTEM – MOTOR

    Load/ Rotor5 – 7 kg
    Max. Thrust15.3 kg
    Weight (Full)1040 g
    Waterproof & Dustproof StandardIPX7
    Stator Size81 * 20 mm
    KV Rating100 KV


  • PROPULSION SYSTEM – ESC

    Recommended LiPo Battery6-12S LiPo
    PWM Input Signal Level3.3 V / 5 V (Compatible)
    Throttle Signal Frequency50-500 Hz
    Operating Pulse Width1100-1940 μs (Fixed)
    Max. Input Voltage52.2 V
    Max. Input Current (Cont.)80 A (With Good Heat Dissipation)
    Max. Peak Current (10s)100 A (With Good Heat Dissipation)
    BECNo


  • PROPULSION SYSTEM – FOLDABLE PROPELLERS (R3390)

    Diameter × Pitch29 x 11 inches
    Weight (per propeller)180 g


  • Collision Avoidance Radar

    ModelMR72
    Transmit Frequency77 GHz
    FOV Angle112° * 14°
    Detection Range0.2 – 40 m
    Distance Accuracy± 0.1 m
    Size100 x 57 x 16.5 mm
    Weight90 g


  • Altimeter Radar

    ModelNRA15
    Transmit Frequency24 GHz
    FOV Angle41° * 37°
    Detection Range30 – 100 m
    Distance Accuracy± 0.04 m
    Size100 x 57 x 16.5 mm
    Weight81 g


  • SPRAYING PUMP – ORYCTES Dual

    Oryctes Dual PumpModel 3210 Pump
    VoltageDC 12 V
    Maximum Current10 A
    Power Rating120 W
    Maximum Pressure1.3 MPa
    Operating Pressure0.8 MPa
    Maximum Flow Rate10 L/min


  • NOZZLE – SPOT SPRAYING

    Recommended Nozzle TypeTP0030 solid stream spray nozzle (Standard) TG-8 full cone nozzle (Optional, purchase separately)
    Quantity1
    Flow Rate50-150 ml/s


  • RTK BASE STATION

    ModelORYRTK
    Multi-ConstellationGPS & GLONASS: readily available in L2C/L2OC
    Galileo: full E5b constellation by ~2020
    BeiDou: B2I available until migration to B2a
    Range2 km, or greater
    Positioning Accuracy1 cm + 1 ppm CEP
    *(Relative accuracy to base, absolute accuracy depends on mapping and base accuracy)
    Working Voltage3.3 V
    Working Current30.3 mA
    Output Power100 mW
    Radio ProtocolLoRa
    Operating Radio Frequency433 MHz
    Battery Life per Charge8 hours
    Battery Capacity10000mAh


  • DRONE CONTROLLER

    ModelORYRC1
    Operating Frequency2.400-2.4833 GHz
    Supply Voltage3.7 V (1S Li-ion)
    Working Current130 mA
    Output power481 mW
    Battery life25 hrs / charge
    Range20 km Without Obstruction
    FirmwareOryctes Flight App
    Charge PortMicro-USB


  • Oryctes INTELLIGENT BATTERY

    Battery Type12S LiPo
    Capacity22000 mAh
    Discharge1.0 CA
    Nominal Voltage44.4 V
    AC Impedance Resistance≤ 13.2mΩ
    Discharge Cut-off Voltage36.0 V
    Charge TimeApprox. 1 hour
    Storage Temperature-10 °C ~ +45 °C
    Operating TemperatureCharging: 0 ~ +45⁰C
    Discharging: -10 ~ +60⁰C
    Battery size172 x 107 x 235mm
    Weight6 kg


  • Oryctes BATTERY CHARGER

    ModelSkyRC PC2600
    Input Voltage200 – 240 V
    Output Voltage2600 W (1300 W x 2)
    Charging CurrentBalance charge (16 A) / Fast charge (22 A)
    Work ModesFast charge / Balance charge / Storage mode / Charging hub
    Weight6780 g
    Dimension236 mm * 175 mm * 267 mm


  • BATTERY CHARGING HUB

    ModelSKyRC G1220-V2
    Capacity4 pcs
    Maximum Amperage20 A

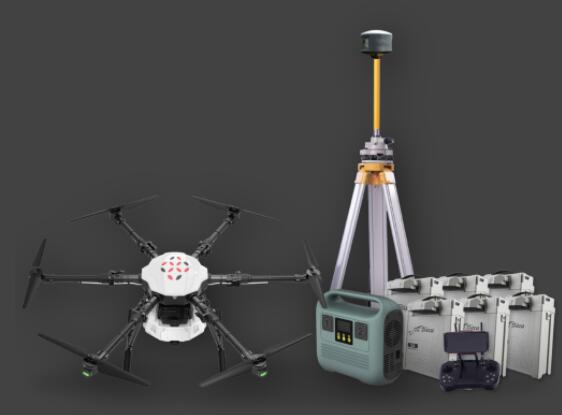

Oryctes Ready-To-Fly Package

Ideal for first-time users, this package contains one unit of Oryctes Dual and everything you need to set up and start flying.

1 unit of Oryctes Dual
1 unit of Oryctes remote controller
Android phone with Oryctes Flight App
4 sets of Oryctes batteries
1 RTK base station set
1 Oryctes battery charger

Accuracy of RTK Spot Spraying Using Oryctes

Review spot spraying accuracy of Oryctes drone in spraying operations for oil palm plantations.
